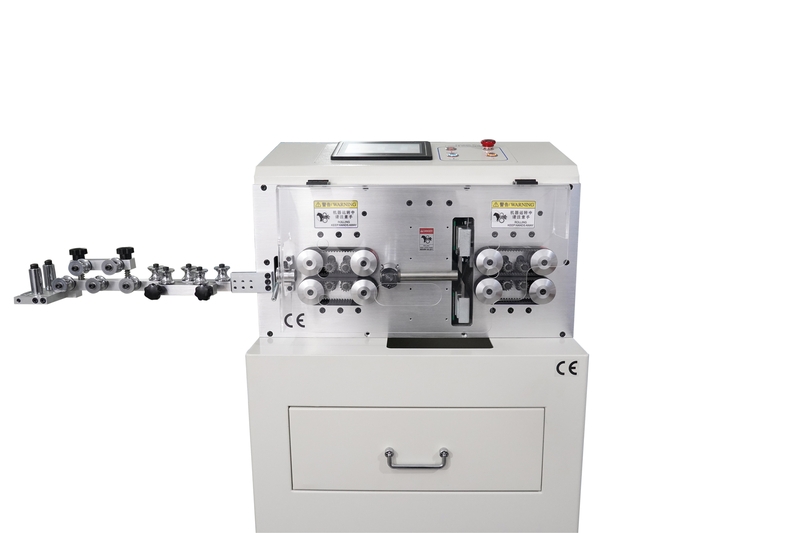

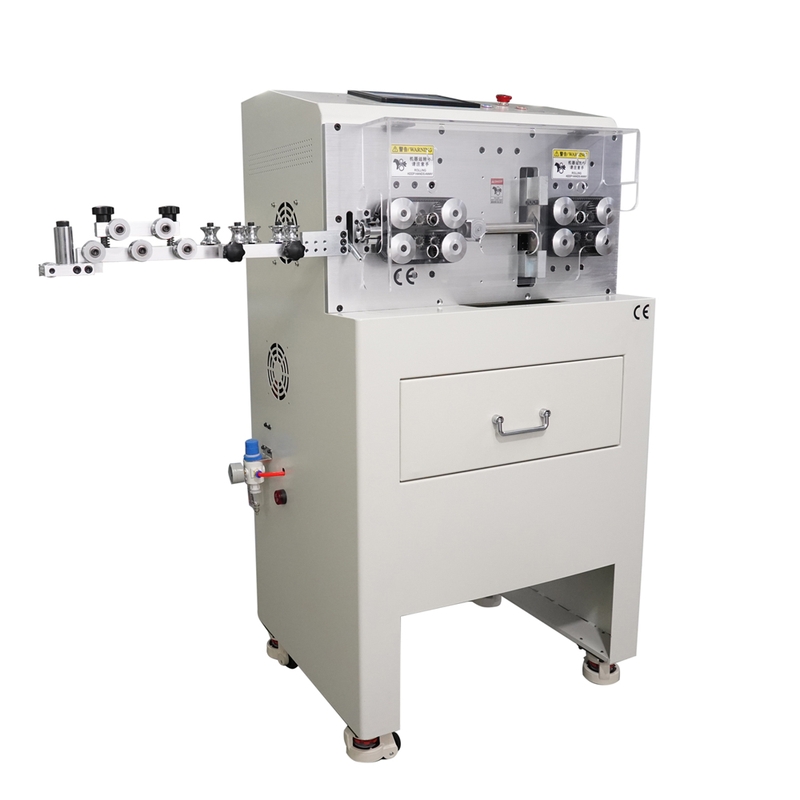

SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Product Image

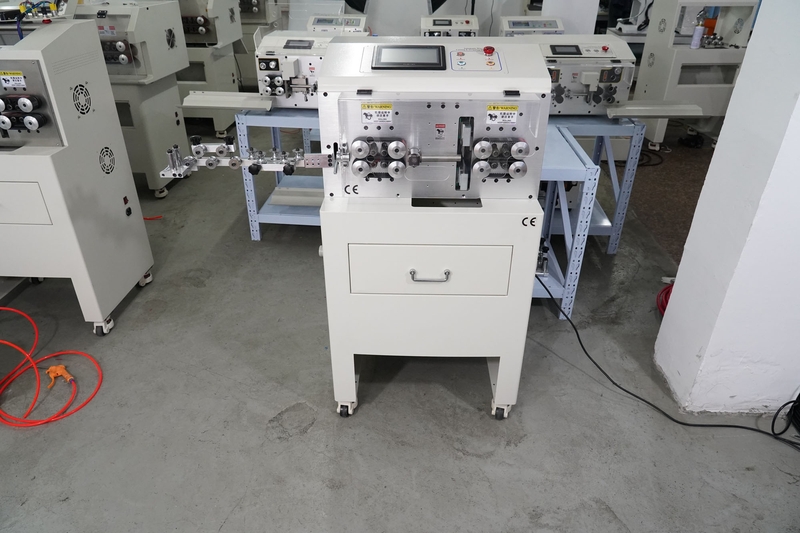

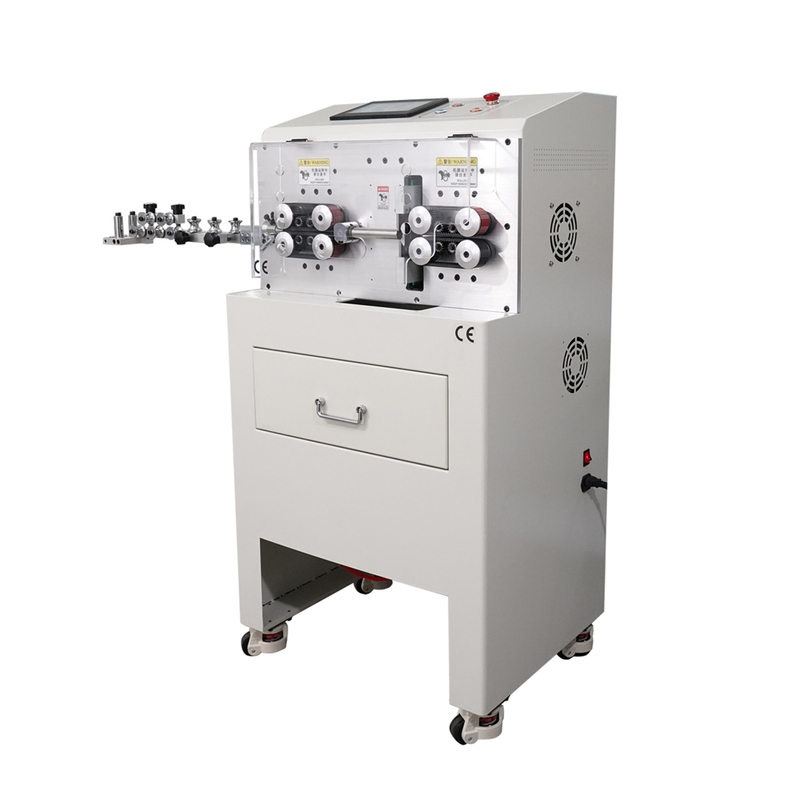

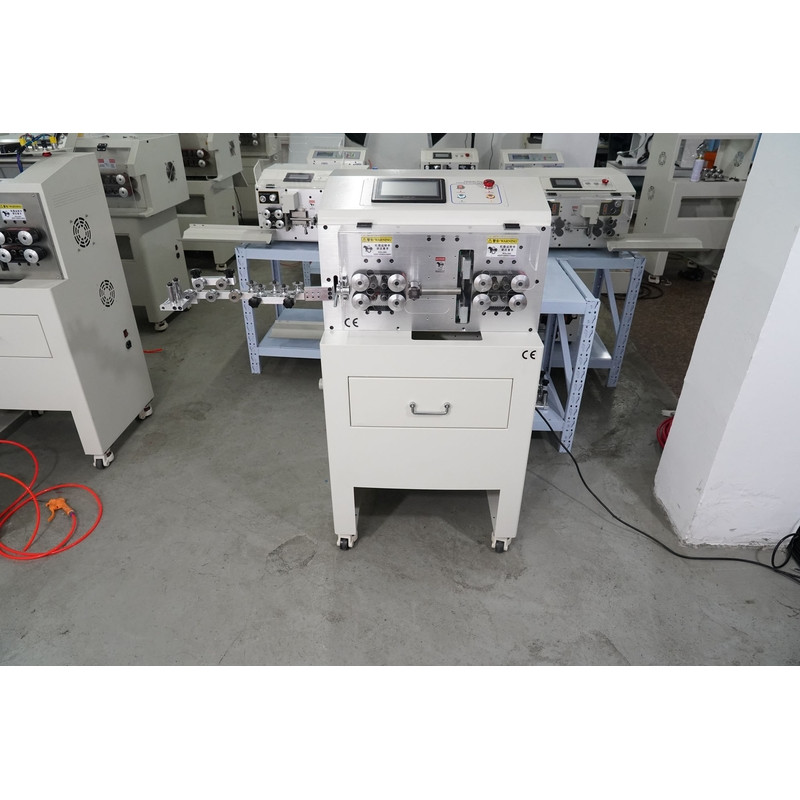

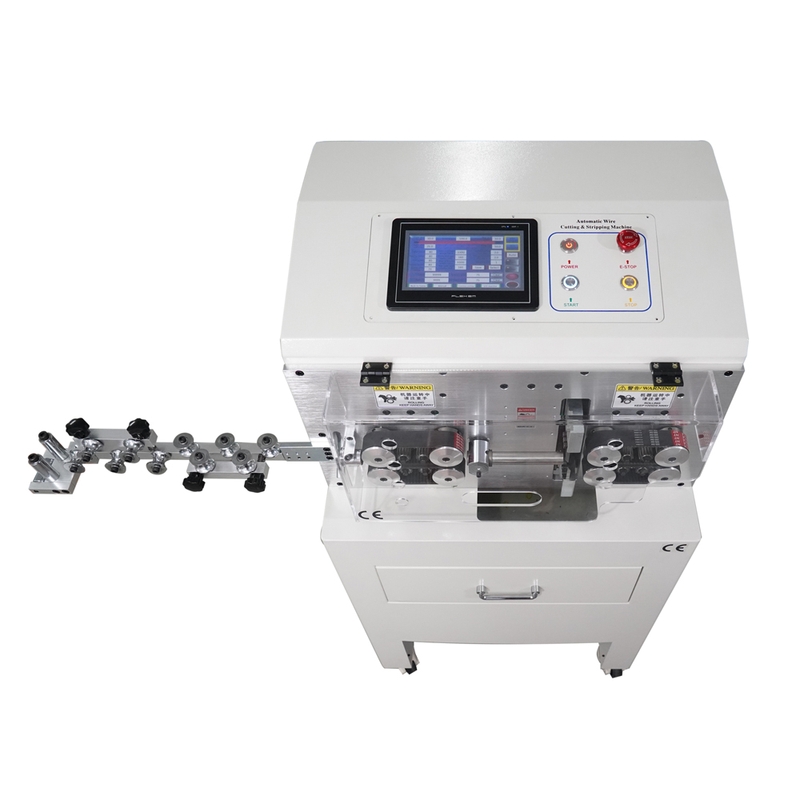

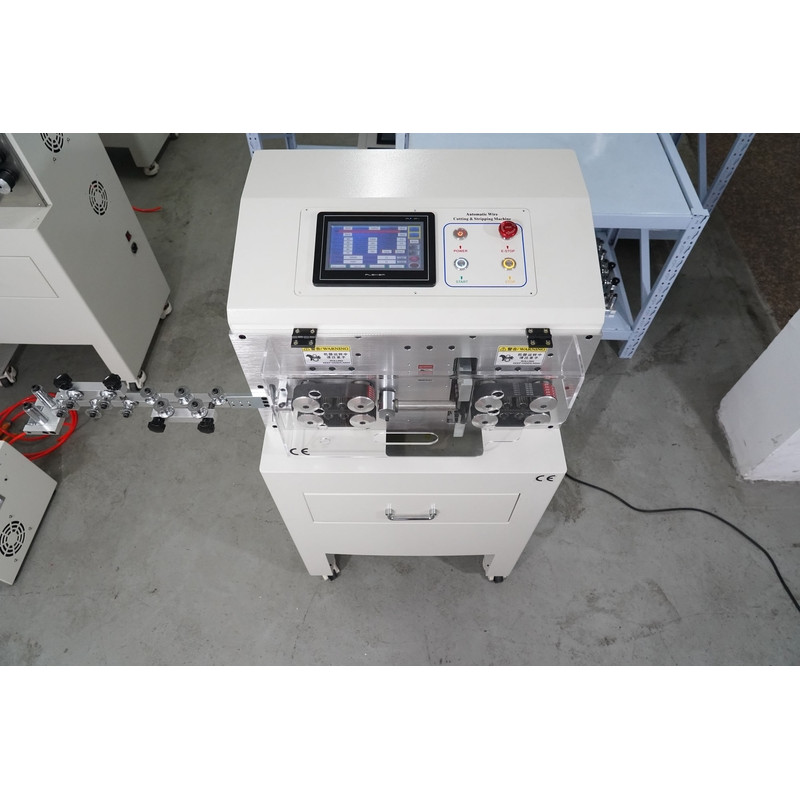

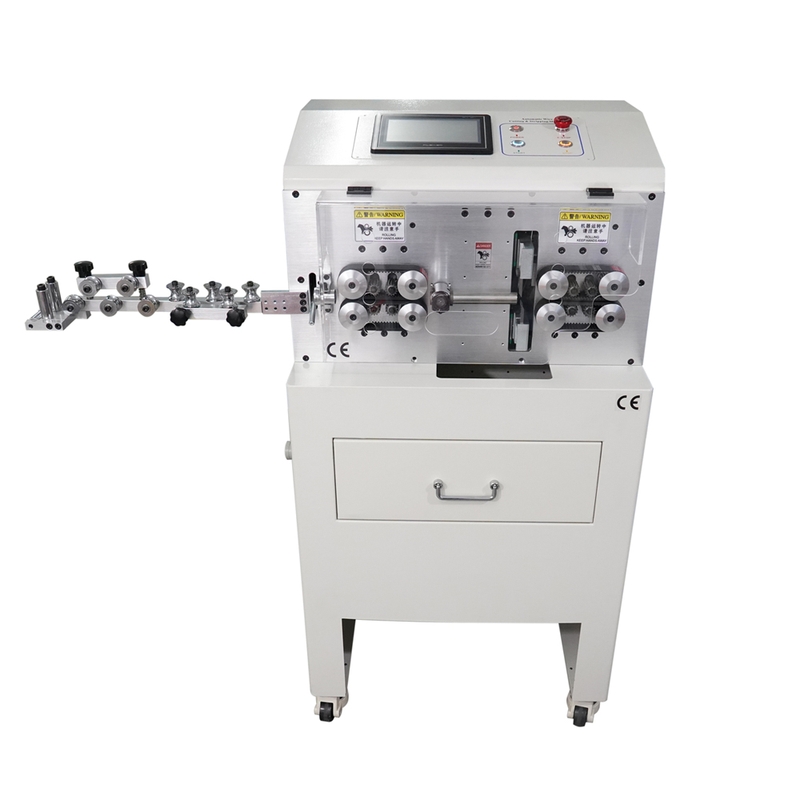

SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Additional View   SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Additional View   SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Additional View   SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Additional View   SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm² - Additional View

SWT508-MAX2 Touch Screen Auto Comp Stripping & Crimping Tool, 1 - 95mm²

  • Product Code: Strip14953129
  • Inquiry Email: sales@xmjw.ink
  • Availability: In Stock


Available Options


Cable Stripping Cutting Peeling Machine SWT508-MAX2 Touch Screen Control Computer Automatic Crimping Peeling Tool for 1~95mm²

P.S: The wire collecting board and protect cover is not include. if you need add. please contact seller.

Weight:130KG Power:1000W
Electrical connection: 110V/220V 50HZ/60HZ

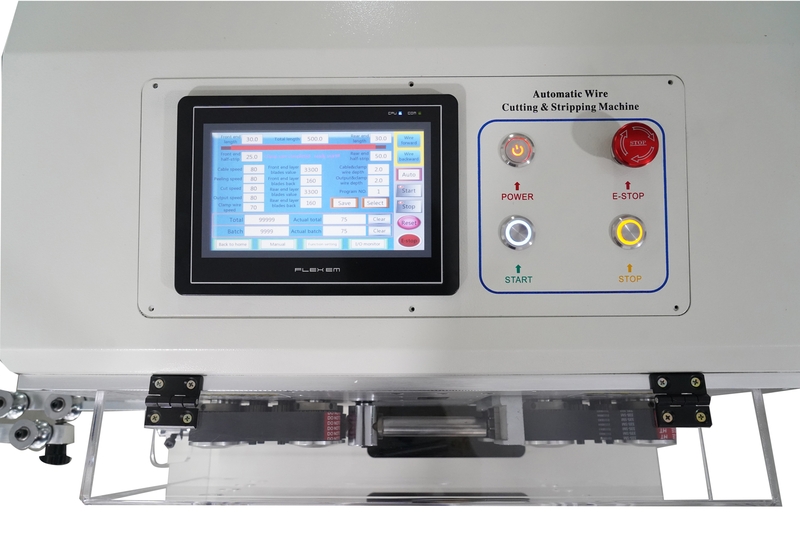

Operation interface: 7 inch Chinese and English switching touch screen display
Machine dimension: 500*620*1180mm
Wire cross section: Max¢15mm (Round sheath wire)
Wire cross section: 1~95mm²
Air pressure: 0.8Mpa Length accuracy: ± 0.2mm
Max conduit inside diameter:¢22mm
Wire length range:Max 400mm
Outer wire strip length:Front end:1-220; rear end:1-150mm
Strip length:Front end:1-50; rear end:1-50mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour) 3000-4000 pieces
Driving mode: eight-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
Driving mode of knife holder: (servo motor driver, ball grinding screw)











Application Computer
Blade material High-speed steel
Certification CE;FCC;RoHS
Driving mode eight-wheel drive (silent hybrid stepper motor;0.1mm forward per step)
is_customized Yes
Machine dimension 500*620*1180mm
Max conduit inside diameter 22mm
Model SWT508-MAX2/S
Model Number SWT508-MAX2/S
Operation interface English/Chinese (LCD display)
Origin Mainland China
Power 1000W
Strip length Full stripping of front end:0-200;Full stripping of rear end:0-100mm
Type Male to Female
Wire cross section 1-95mm²
Wire material PVC;Teflon;Braided;Fiberglass wire
