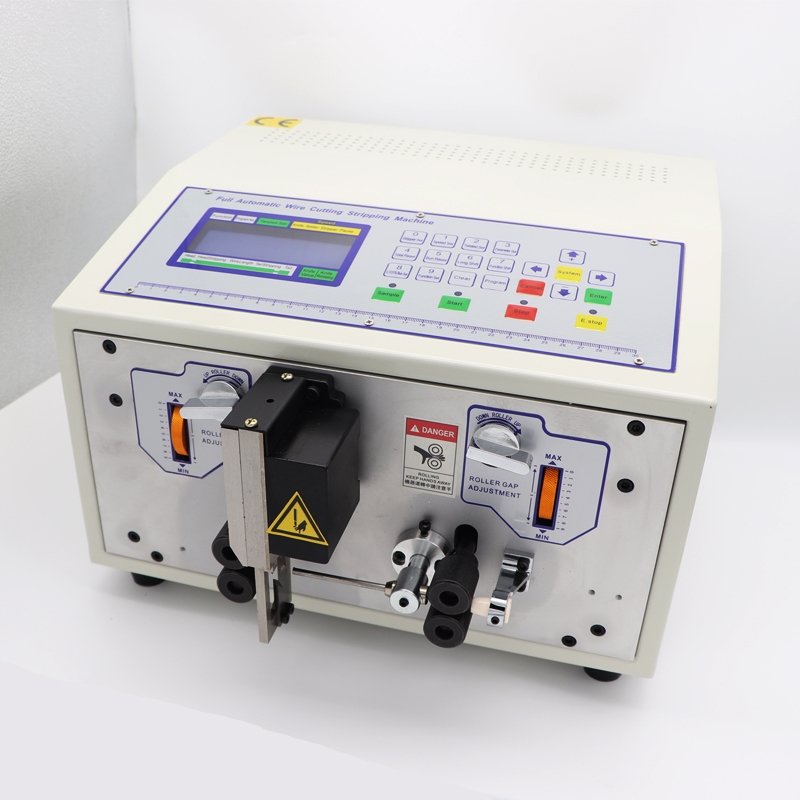

0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Product Image
0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View   0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables - Additional View

0.1 - 4.5MM² SWT508SD Touch Screen Auto Stripper, Adjustable, Cut & Peel Cables

  • Product Code: Strip14723637
  • Inquiry Email: sales@xmjw.ink
  • Availability: In Stock


Available Options


0.1-4.5MM2 SWT508SD Automatic Wire Stripping Peeling Cutting Machine Touch Screen Adjustable Computer Cable Cutter Stripper

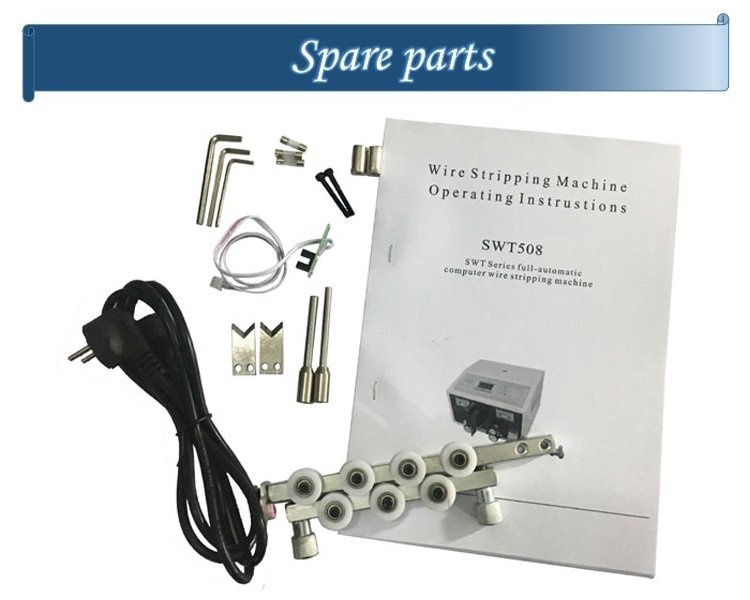

P.S: The protect cover is not included. if you need. please contact seller.

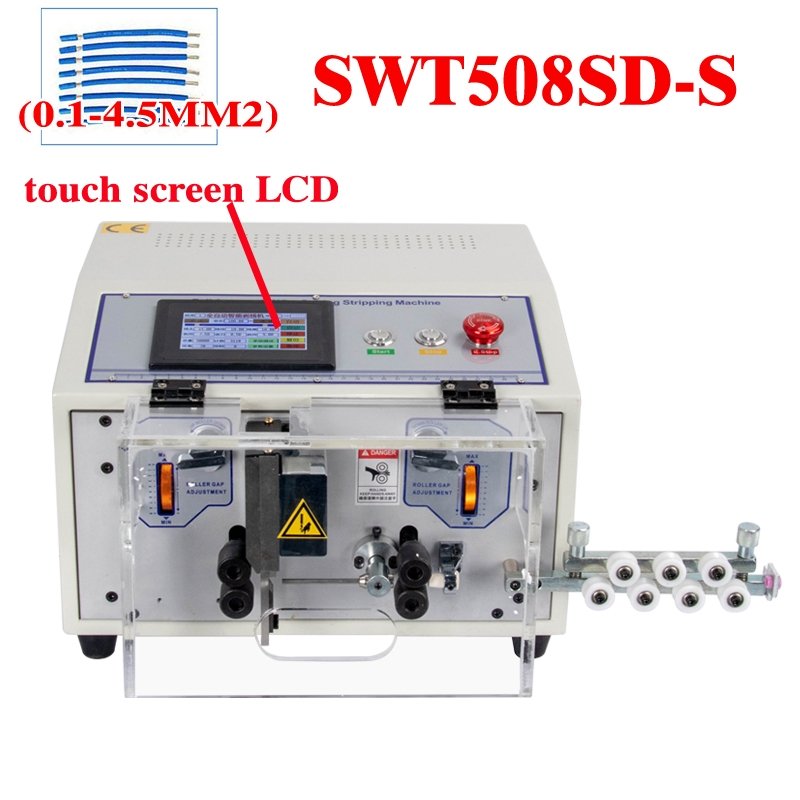

(RE:SWT508SD-S is with touch screen control.



Specifications for SWT508SD/SDS:

Model

SWT508- SD/SDS


Wire cross section

0. 1~4.5mm2


Wire length range

1mm~ 999mm

Stripping lengths

Full strip/hal strip/middle strip

Strip length

Front end 0-35;rear end 0- 15mm .

Intermediate peeling times

11 times

Max conduit inside diamneter

¢6mm

Transport speed

3000- 8000pcs/ hour


Length accuracy

less tha (0.002xL) mm

Noise level

<70dB(A)

Gross weight

31kgs

Packing dimension

537*507*400mm

Operation interface

English/Chinese

Wire material

For PVC, Teflon Braided, Fiberglass wire

Electrical connection

110V/220 50HZ/60HZ200W









Application Computer
Certification CE;FCC;RoHS
Hign-concerned Chemical None
is_customized Yes
Model SWT508SD wire stripping machine
Model Number SWT508SD wire stripping machine
Origin Mainland China
Type Male to Female
Wire Range 0.1-4.5MM2
