331 Automatic Glue Spraying Robot with 5L Pressure Tank
- Product Code: glue14891950
- Inquiry Email: sales@xmjw.ink
- Availability: In Stock

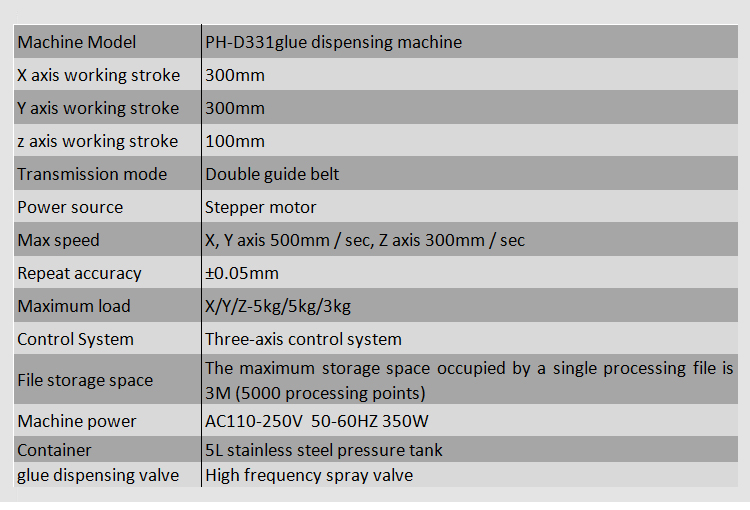

Machine Model | PH-D331glue dispensing machine |
X axis working stroke | 300mm |
Y axis working stroke | 300mm |
z axis working stroke | 100mm |
Transmission mode | Double guide belt |
Power source | Stepper motor |
Max speed | X, Y axis 500mm / sec, Z axis 300mm / sec |
Repeat accuracy | ±0.05mm |
Maximum load | X/Y/Z-5kg/5kg/3kg |

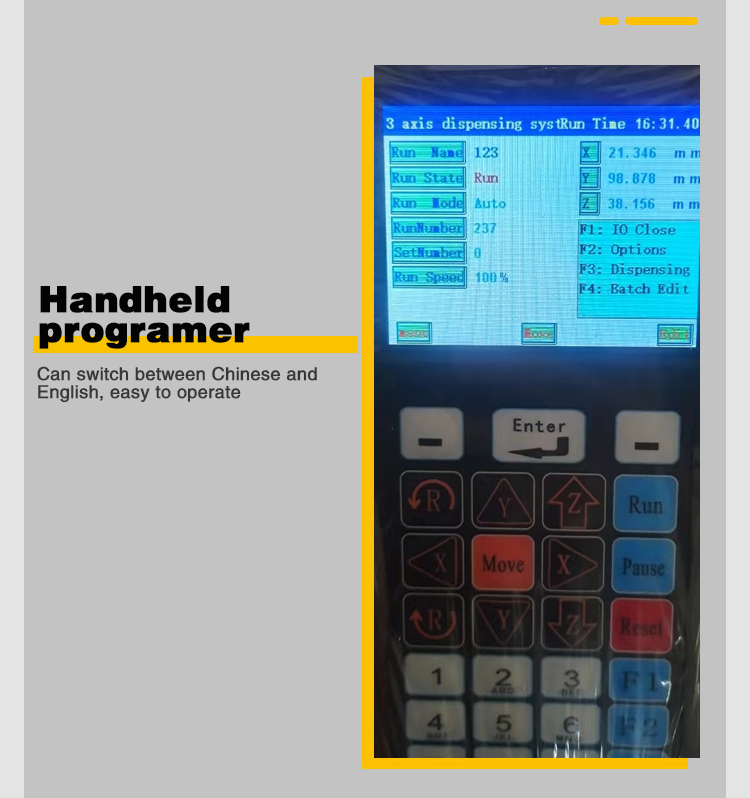

Control System | Three-axis control system |
File storage space | The maximum storage space occupied by a single processing file is 3M (5000 processing points) |
Machine power | AC110-250V50-60HZ 350W |

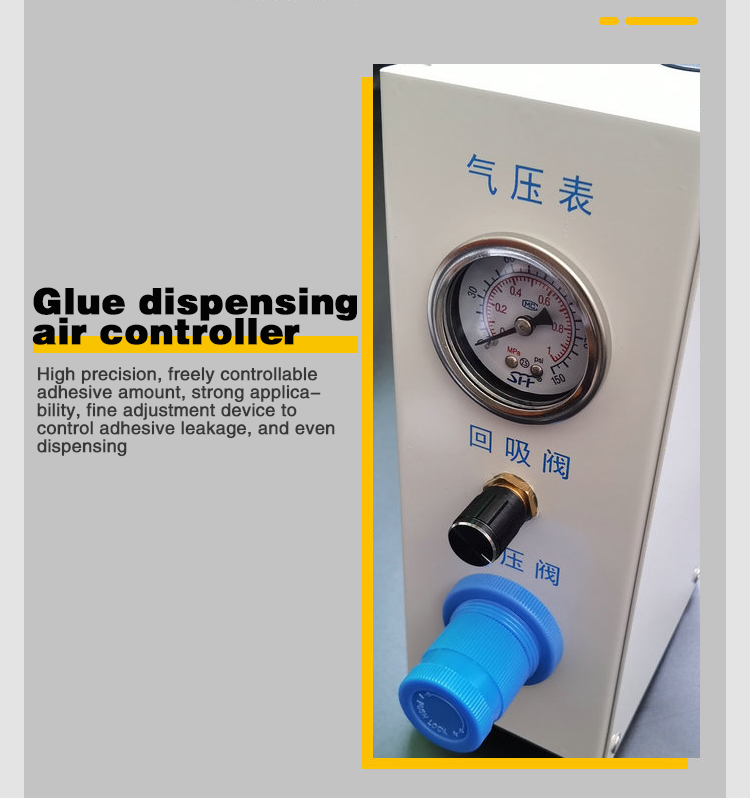

Container | 5L stainless steel pressure tank |
glue dispensing valve | High frequency spray valve |
| is_customized | Yes |
| Model Number | PH-D331 |
| Origin | Mainland China |
| Type | Epoxies |
