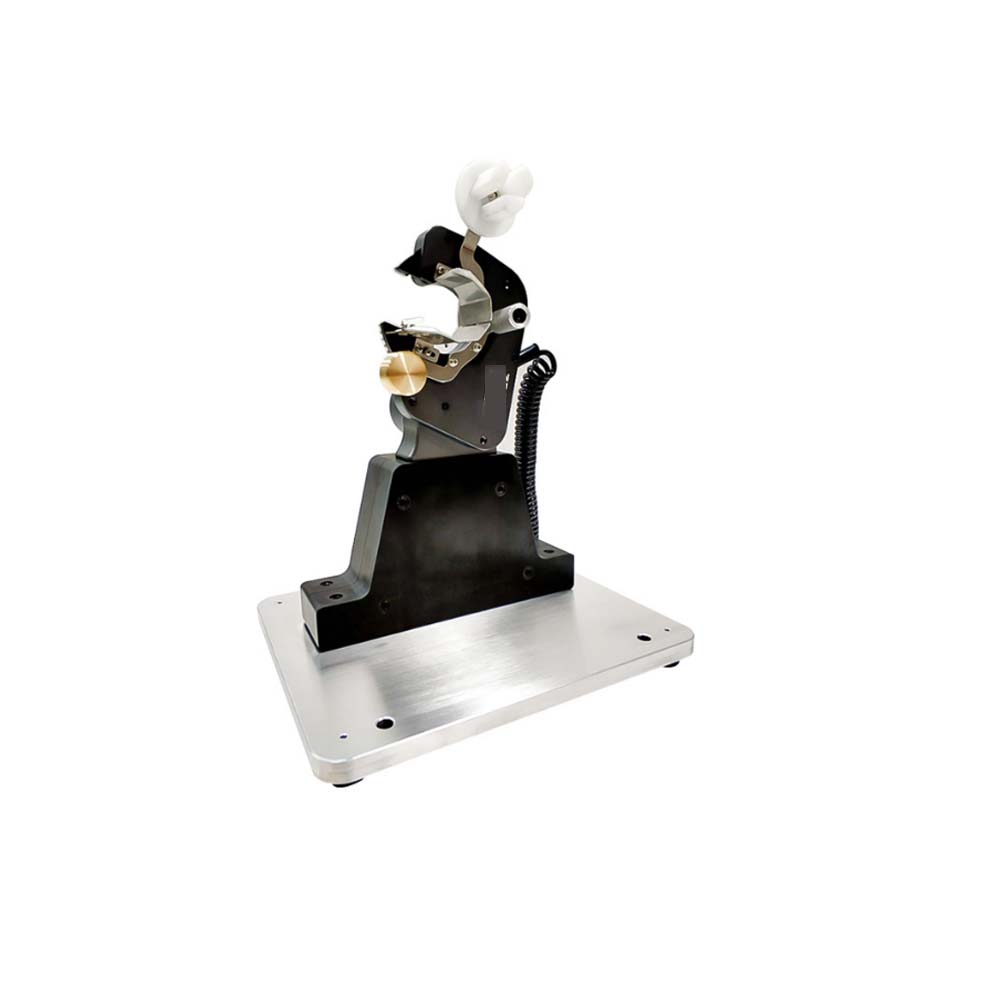

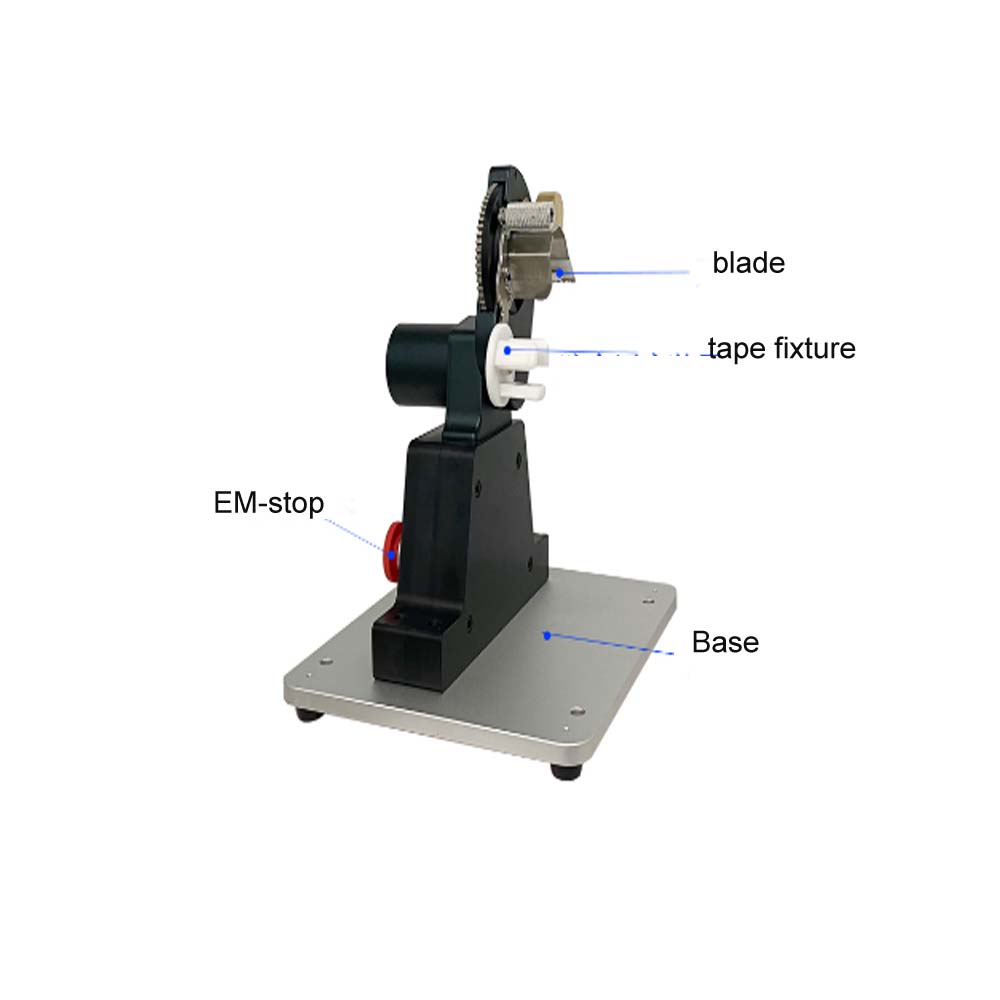

Desktop Semi-Automatic Tape Wrapping Machine for Wire Harness
- Product Code: tape114205233
- Inquiry Email: sales@xmjw.ink
- Availability: In Stock
Products Description
Specification
|
Item
|
Specification
|
|
Place of Origin
|
China
|
|
Brand Name
|
Sinrad
|
|
Model Number
|
SR-35Z
|
|
Usage
|
Taping
|
|
Applicable wire diameter
|
8-35mm
|
|
Winding length
|
Unlimited, manual control
|
|
Tape type
|
PVC / velvet / acetic acid tape (without release paper), etc.
|
|
The inner hole of tape reel
|
38mm/32mm/special customized(Please inform the size in advance)
|
|
Applicable tape size
|
Width 10-25mm, outer diameter less 110mm.
|
|
Power supply
|
AC 100-240V 50/60HZ
|
|
Size
|
440*380*320mm
|
|
Weight
|
8kg
|
|
Winding speed
|
150-400rpm
|
Feature
1. On the support frame, this desktop device can complete high-quality winding of wire harness with various adhesive tapes, and its effect is the same as that of other devices. It is strong, light, easy to operate and not easy to feel tired.

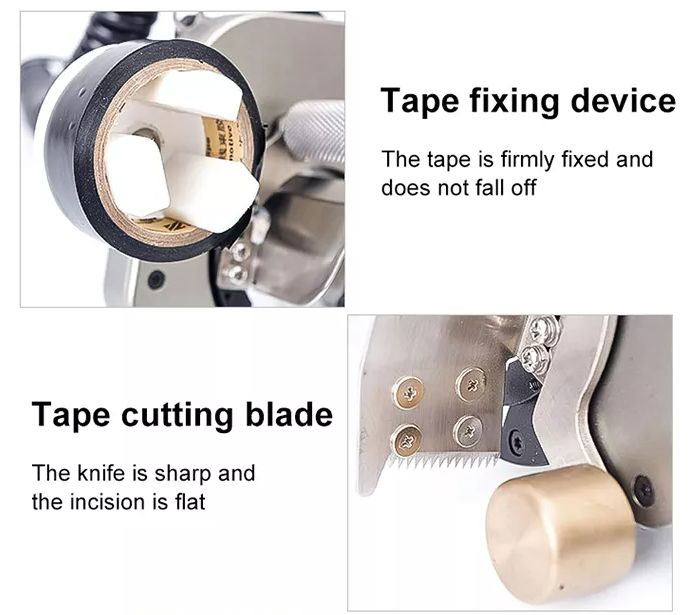

2.The integrated cutter with protective cover can cut the tape of any material. Simple operation.
3. The tape roll can be adjusted to the required direction, and ensure that the tape surface is of good quality: appropriate tension and no wrinkles.
4. Tool with protective cover; Simple and ergonomicthis device is efficient because it is easy to move.
5. The distance and overlap of the tape can be adjusted to reduce waste, and the tool automatically jumps to the next position. No additional process is required to prepare for the next step.
2.The integrated cutter with protective cover can cut the tape of any material. Simple operation.
3. The tape roll can be adjusted to the required direction, and ensure that the tape surface is of good quality: appropriate tension and no wrinkles.
4. Tool with protective cover; Simple and ergonomicthis device is efficient because it is easy to move.
5. The distance and overlap of the tape can be adjusted to reduce waste, and the tool automatically jumps to the next position. No additional process is required to prepare for the next step.
Other model

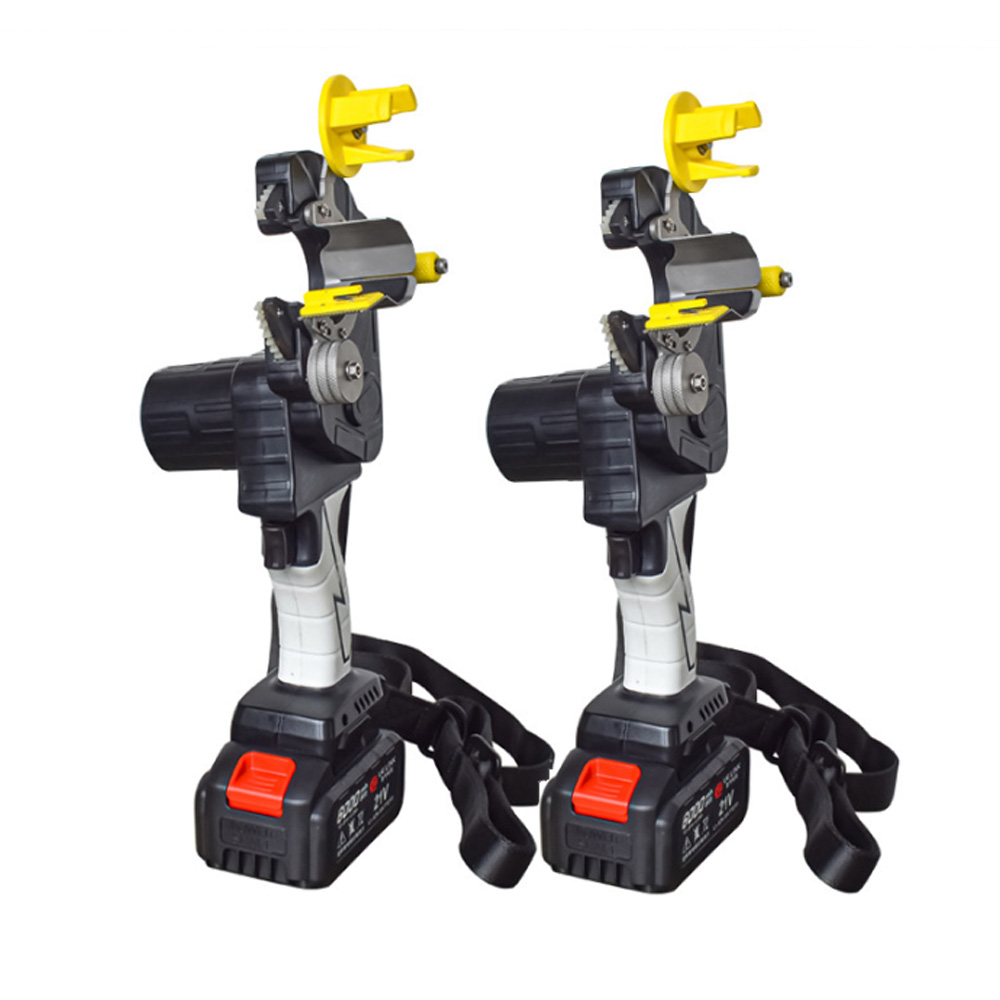

hand held tape wrapping machine
| Brand Name | Sinrad |
| Model | SR-35Z |
| Model Number | SR-35Z |
| Name | Tape winding machine |
| Place of Origin | Guangdong;China |
| Power Supply | 100~240VAC 50-60HZ |
| Size | 440*380*320mm |
| Tape specification | width 10-25mm |
| Usage | WINDING;taping;Roll-packing Products |
| Warranty | 1year |
| Weight | 8kg |
| Winding speed | 150-400rpm |
| Wire harness diameter | 35(8-35MM);55(20-55mm) |
